How a Top Z distance test can rescue tree-supported 3D prints
The article explains that failed 3D prints waste material, time, and power, often when tree supports break away incorrectly. It recommends printing a dedicated Top Z distance test to tune support settings for a printer, filament type, and layer height.
The article presents failed tree-supported prints as a costly mix of material, time, and electricity waste. It explains that Top Z distance sets the clearance between a model’s underside and its tree support, so the value must be tuned rather than guessed. Too large a gap can leave plastic unanchored and create stringy failure; too small a gap can fuse support to the model and tear the surface.

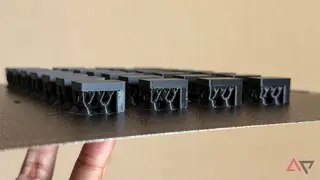

The suggested workflow uses a dedicated test model from repositories such as MakerWorld, Printables, and Thingiverse. The author’s MakerWorld test had 28 pieces, and the article advises choosing a file with more than 15 different distance values, then checking which supports detach cleanly. Settings should match filament type and layer height.
This guidance may mainly affect hobbyists, small print shops, and makers who rely on desktop 3D printing, since fewer failed prints could reduce plastic waste, electricity use, and reprint time. Better support tuning could make tree-supported designs less intimidating for newcomers and improve reliability for low-volume production. The broader effect is likely modest, but wider sharing of test-based calibration practices could gradually raise expectations for repeatable results and material efficiency in consumer additive manufacturing.
